Nissan Leaf Owners Manual | 2025

6.5.7. Vehicle information display warnings and indicators

The displayed images and the displayed items may differ depending on the model.

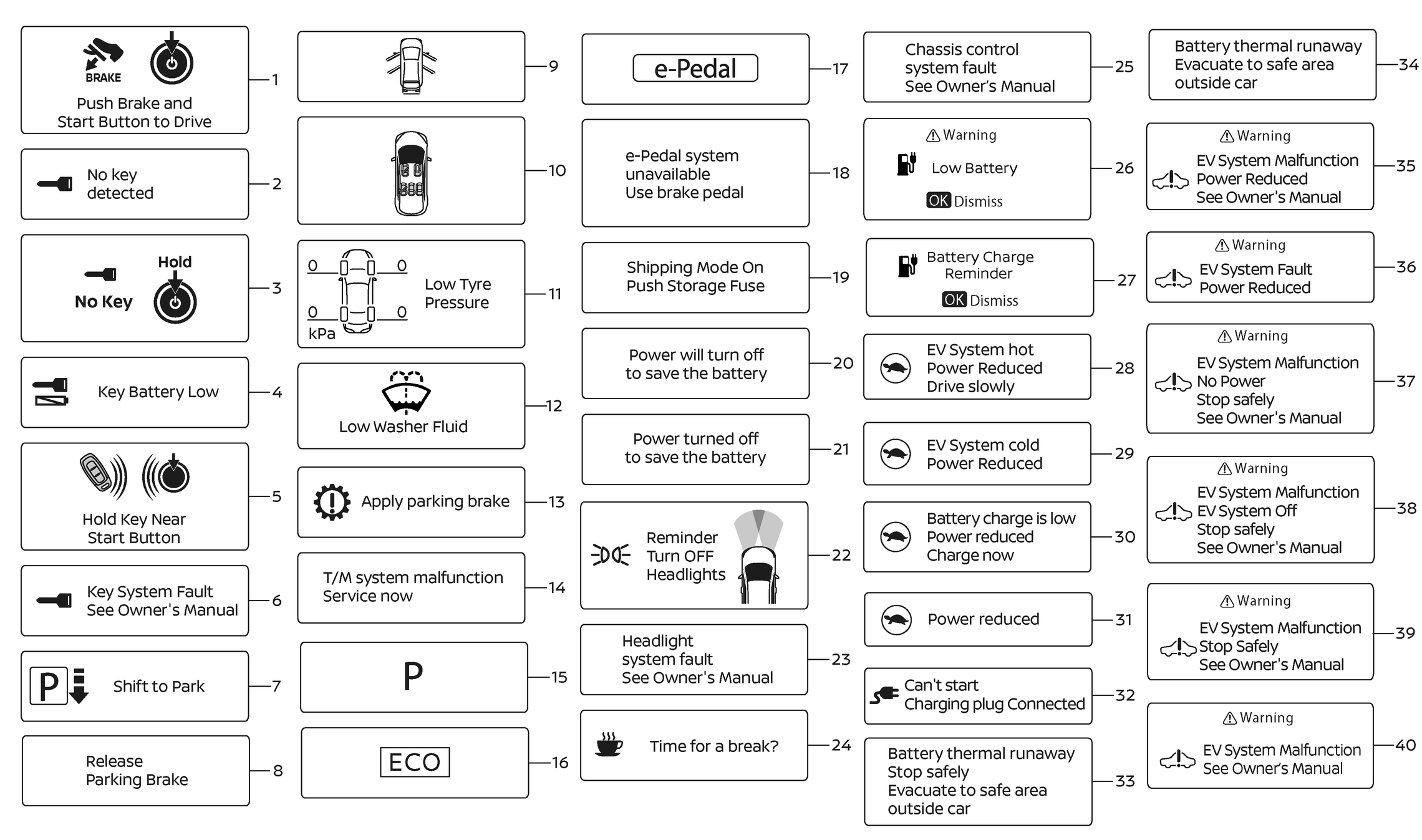

1. [Push Brake and Start Button to Drive] indicator
2. [No key detected] warning
3. [No Key] Hold power switch indicator
4. [Key Battery Low] warning
5. [Hold Key Near Start Button] indicator
6. [Key System Fault See Owner’s Manual] warning
7. [Shift to Park] warning
8. [Release Parking Brake] warning
9. Door/tailgate open warning
10. Occupant status display
11. [Low Tyre Pressure] warning
12. [Low Washer Fluid] warning (where fitted)
13. [Apply parking brake] warning
14. [T/M system malfunction Service now] warning
15. Shift position indicator
16. Drive Mode Selector indicator
17. e-Pedal indicator
18. [e-Pedal system unavailable Use brake pedal] warning
19. [Shipping Mode On Push Storage Fuse] warning
20. [Power will turn off to save the battery] warning
21. [Power turned off to save the battery] warning
22. [Reminder Turn OFF Headlights] warning
23. [Headlight system fault See Owner’s Manual] warning
24. [Time for a break?] indicator
25. [Chassis control system fault See Owner’s Manual] warning
26. [Low Battery] warning
27. [Battery Charge Reminder] indicator
28. [EV System hot Power Reduced Drive slowly] warning
29. [EV System cold Power Reduced] warning
30. [Battery charge is low Power reduced Charge now] warning
31. [Power reduced] warning
32. [Can't start Charging plug Connected] warning
33. [Battery thermal runaway Stop safely Evacuate to safe area outside car] warning
34. [Battery thermal runaway Evacuate to safe area out side car] warning

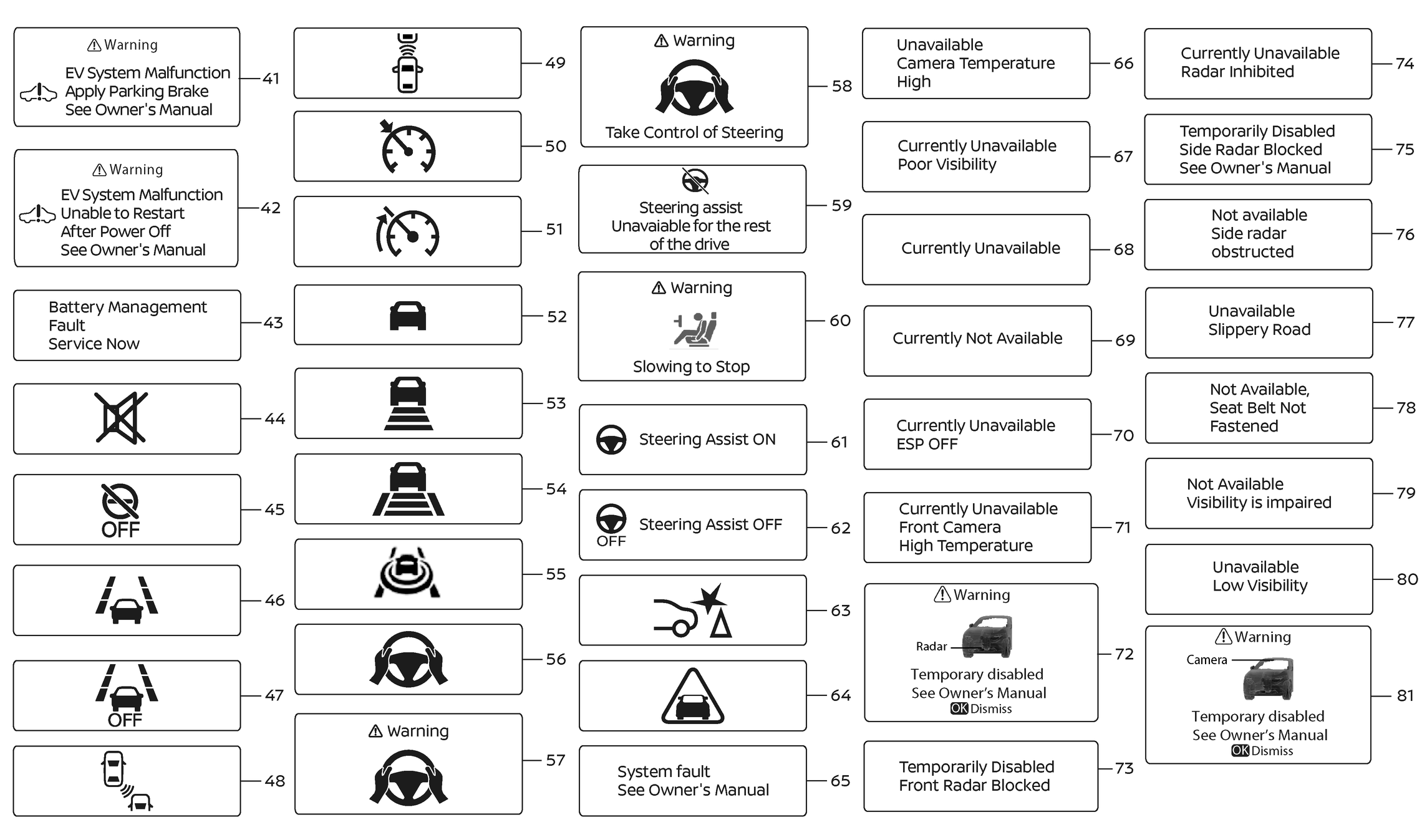

35-42. EV system malfunction related warnings
43. [Battery Management Fault Service Now] warning
44-45. Traffic Sign Recognition (TSR) system indicators
46. Emergency Lane Assist (ELA) indicator
47. Emergency Lane Assist (ELA) system OFF indicator
48. Blind Spot Warning (BSW) with Exit Warning indicator
49. Vehicle ahead detection indicator
50. Cruise indicator
51. Speed limiter indicator
52. Intelligent Distance Control (IDC) system status indicator (where fitted)
53. Intelligent Cruise Control (ICC) system status indicator (where fitted)
54. Speed control status/set distance/lane marker indicator (where fitted)
55. ProPILOT Assist system status indicator (where fitted)
56. Steering Assist indicator (where fitted)
57–60. Hands on detection warning (where fitted)
61-62. Steering Assist guidance (where fitted)
63. Rear Automatic Braking (RAB) system warning indicator (where fitted)
64. Intelligent Emergency Braking emergency warning indicator
65. [System fault See Owner’s Manual] warning
66. [Unavailable Camera Temperature High] warning
67. [Currently Unavailable Poor Visibility] warning
68. [Currently Unavailable] warning
69. [Currently Not Available] warning
70. [Currently Unavailable ESP OFF]
71. [Currently Unavailable Front Camera High Temperature] warning
72. [Temporarily Disabled See Owner’s Manual] warning
73. [Temporarily Disabled Front Radar Blocked] warning
74. [Currently Unavailable Radar Inhibited] warning
75. [Temporarily Disabled Side Radar Blocked See Owner’s Manual] warning
76. [Not available Side radar obstructed] warning
77. [Unavailable Slippery Road] warning (where fitted)
78. [Not Available, Seat Belt Not Fastened] indicator (where fitted)
79. [Not Available Visibility is impaired] indicator (where fitted)
80. [Unavailable Low Visibility] indicator (where fitted)
81. [Temporarily disabled See Owner’s Manual] warning

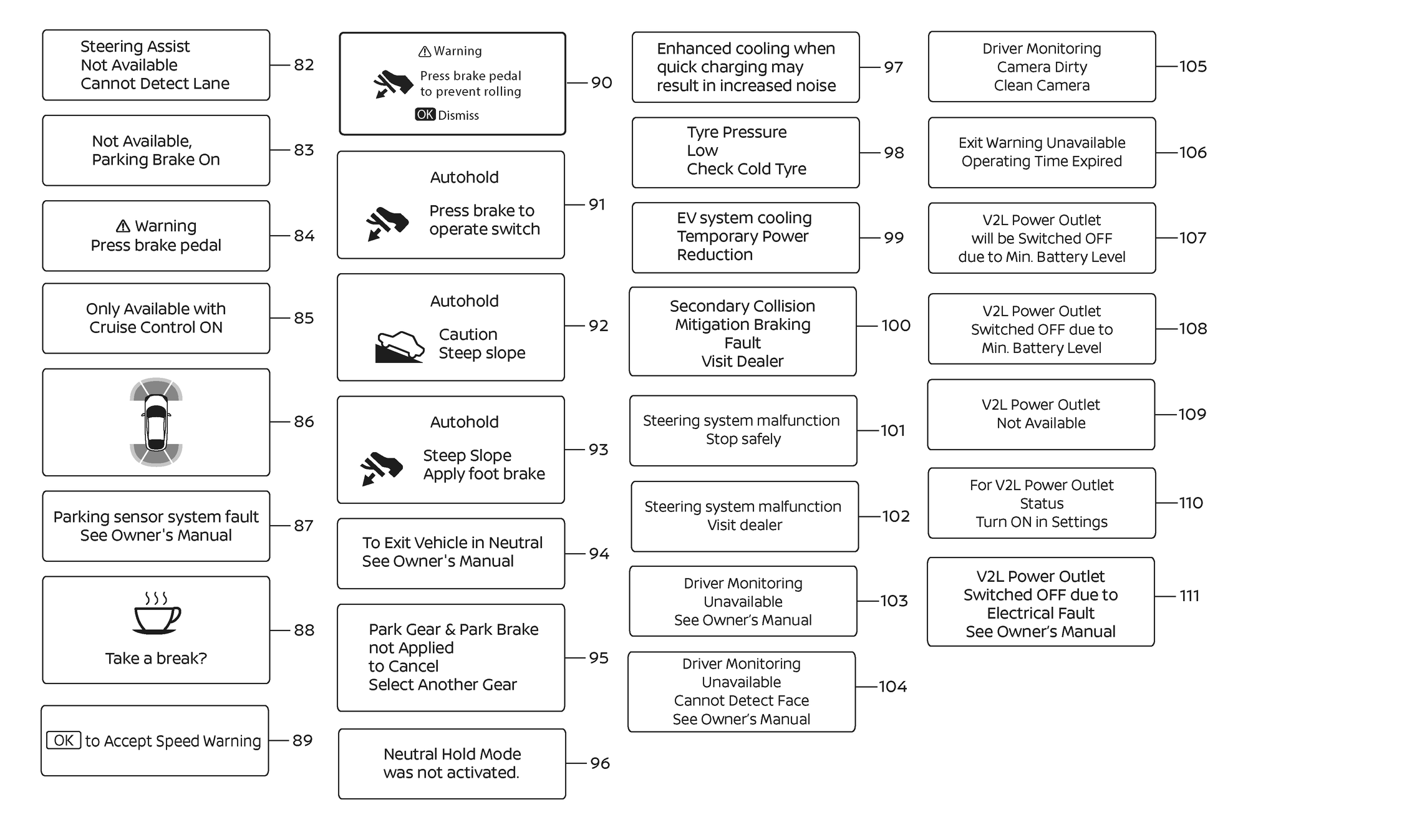

82. [Steering Assist Not Available Cannot Detect Lane] indicator (where fitted)
83. [Not Available, Parking Brake On] indicator (where fitted)
84. [Press brake pedal] warning (where fitted)
85. [Only Available with Cruise Control ON] indicator (where fitted)
86. Parking sensor (sonar) indicator
87. [Parking sensor system fault See Owner’s Manual] warning
88. [Take a break?] indicator
89. [OK to Accept Speed Warning] indicator
90. [Press brake pedal to prevent rolling] warning
91. [Press brake to operate switch] indicator
92. [Caution Steep slope] indicator
93. [Steep Slope Apply footbrake] indicator
94. Neutral Hold Mode guidance indicator
95. Neutral Hold Mode activated indicator
96. [Neutral Hold Mode was not activated.] indicator
97. Battery Cooling Assist ON indicator
98. [Tyre Pressure Low Check Cold Tyre] warning
99. [EV system cooling Temporary Power Reduction] warning
100. [Secondary Collision Mitigation Braking Fault Visit Dealer] warning
101. [Steering system malfunction Stop safely] warning
102. [Steering system malfunction Visit dealer] warning
103. [Driver Monitoring Unavailable See Owner’s Manual] warning
104. [Driver Monitoring Unavailable Cannot Detect Face See Owner’s Manual] warning
105. [Driver Monitoring Camera Dirty Clean Camera] warning
106. [Exit Warning Unavailable Operating Time Expired] warning
107. [V2L Power Outlet will be Switched OFF due to Min. Battery Level] warning
108. [V2L Power Outlet Switched OFF due to Min. Battery Level] warning
109. [V2L Power Outlet Not Available] warning
110. [For V2L Power Outlet Status Turn ON in Settings] indicator
111. [V2L Power Outlet Switched OFF due to Electrical Fault See Owner’s Manual] warning
