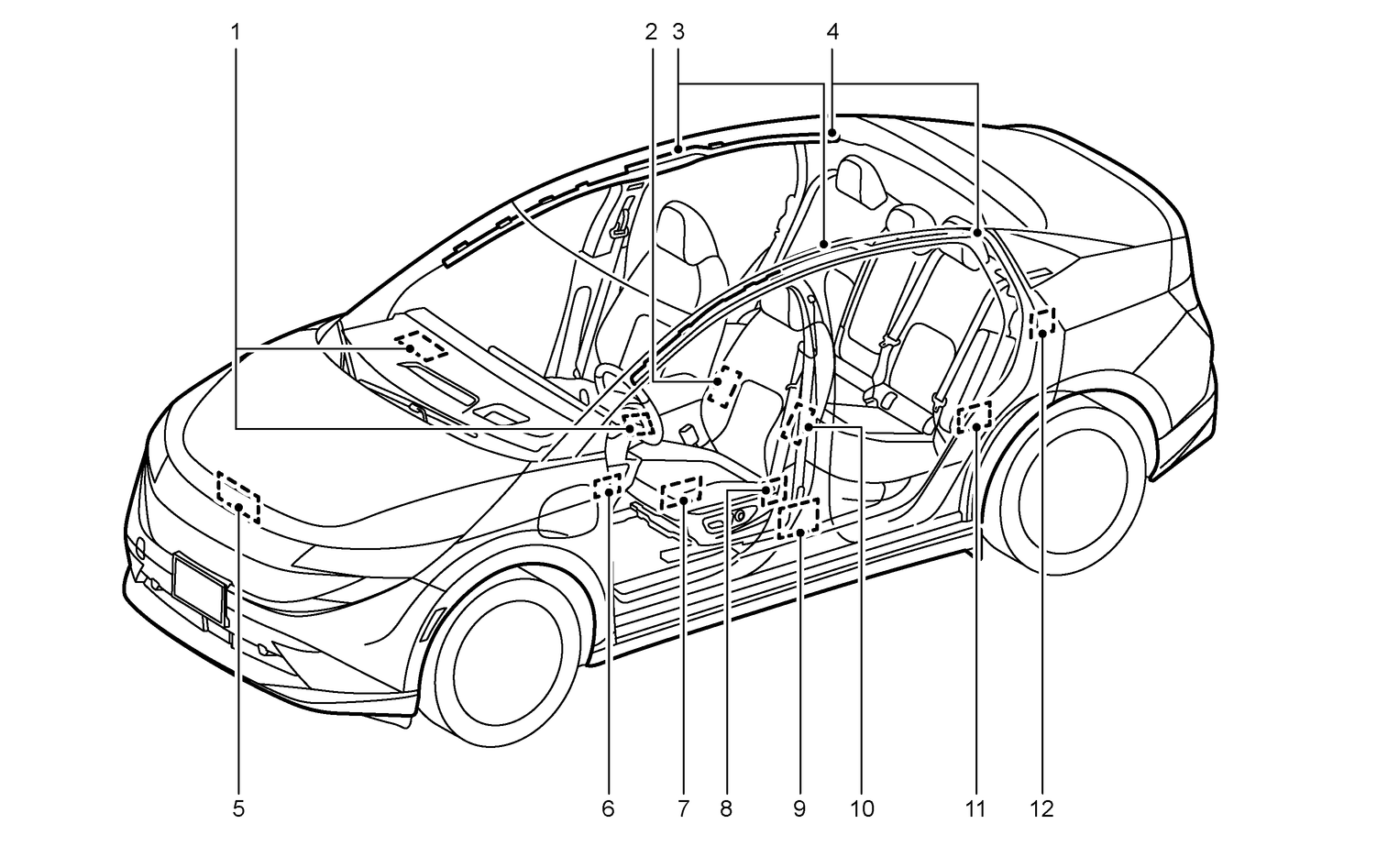

5.5.2. Supplemental air bag systems
- 1.Supplemental front-impact air bag modules
- 2.Front central seat-mounted side-impact supplemental air bag (where fitted)
- 3.Roof-mounted curtain side-impact and rollover supplemental air bag inflators
- 4.Roof-mounted curtain side-impact and rollover supplemental air bag modules
- 5.Crash zone sensor
- 6.Air bag Control Unit (ACU)
- 7.Front door pressure sensors (driver's side shown; front passenger side similar)
- 8.Lap outer pretensioners (front seats)
- 9.Seat belt with pretensioners (front seats)
- 10.Front seat-mounted side-impact supplemental air bag modules (driver’s side shown; front passenger side similar)
- 11.Satellite sensors (driver's side shown; front passenger side similar)
- 12.Seat belt with pretensioners (rear left side shown; rear right side similar)
Do not place any objects on the steering wheel pad, on the instrument panel, and near the front door finishers and the front seats. Do not place any objects between any occupants and the steering wheel pad, on the instrument panel, and near the front door finishers and the front seats. Such objects may become dangerous projectiles and cause injury if a supplemental air bag inflates.
Immediately after inflation, several supplemental air bag system components will be hot. Do not touch them: you may severely burn yourself.
No unauthorised changes should be made to any components or wiring of the supplemental air bag systems. This is to prevent accidental inflation of the supplemental air bags or damage to the supplemental air bag systems.
Do not make unauthorised changes to your vehicle’s electrical system, suspension system, front end structure and side panels. This could affect proper operation of the supplemental air bag systems.
Tampering with the supplemental air bag systems may result in serious personal injury. Tampering includes changes to the steering wheel and the instrument panel by placing materials over the steering wheel pad and above, around or on the instrument panel or by installing additional trim materials around the supplemental air bag systems.
Work on and around the supplemental air bag systems should be done by a NISSAN certified electric vehicle dealer. The SRS wiring should not be modified or disconnected. Unauthorised electrical test equipment and probing devices should not be used on the supplemental air bag systems.
The SRS wiring harness connectors are yellow and/or orange for easy identification.
When the air bags inflate, a fairly loud noise may be heard, followed by the release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.
