Nissan Leaf Owners Manual | 2025

3.8.1.1. Vehicle information display

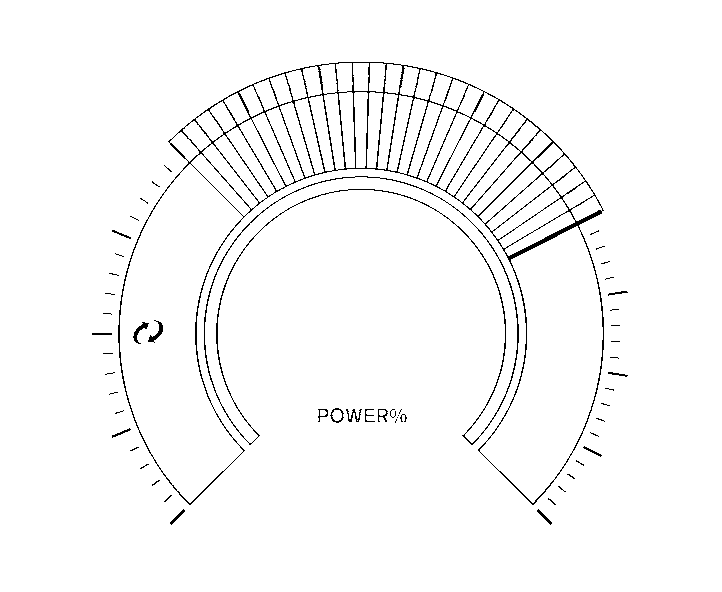

Power meter


This meter displays the actual traction motor power consumption and the regenerative brake power provided to the Li-ion battery.

For additional information, see

.

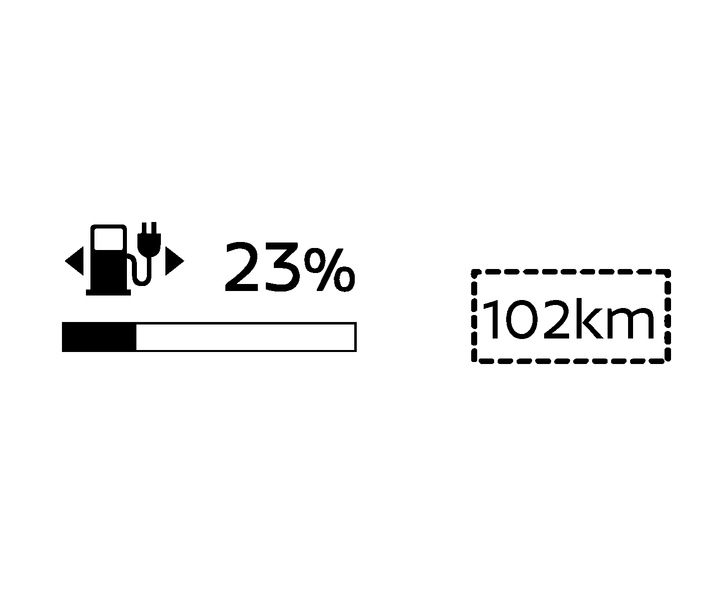

Estimated driving range


This indicator displays the estimated driving range (calculated based on a programme that accounts for current driving style and operational conditions) that can be driven before recharging is necessary.

For additional information, see

.

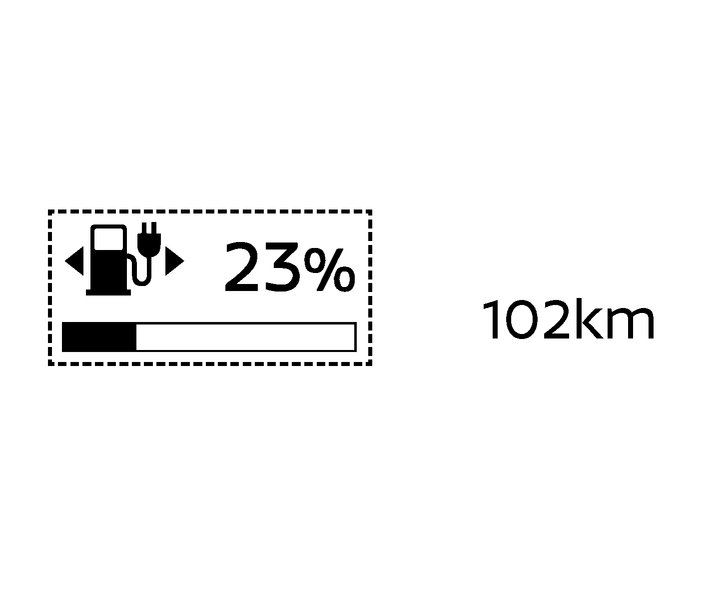

Li-ion battery available charge gauge


This indicator displays the available Li-ion battery power remaining to drive the vehicle.

For additional information, see

.

Li-ion battery capacity gauge


The gauge displays the available capacity of the Li-ion battery remaining to store power.

To check the battery capacity, select it in the trip computer menu. For additional information, see

.

Other information

The other electric vehicle unique information is displayed on the trip computer as well. For additional information, see

.
Parent topic:
