12.9.2. Replacing


Replace the wiper blades if they are worn. To replace the wiper blades first you have to put them in the service position. See

Windscreen wiper and washer operation
.

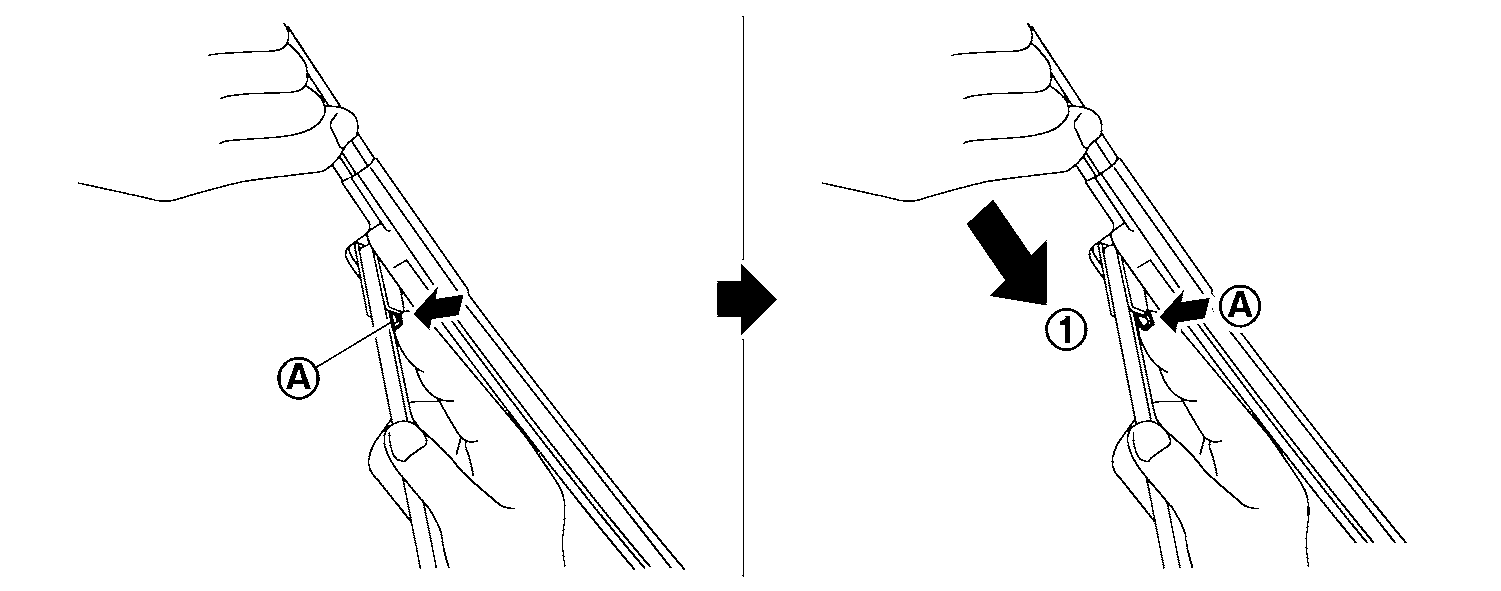

  1. Lift the wiper arm away from the windscreen.

  2. Push the release tab (A), and then move the wiper blade down the wiper arm (1) while pushing the release tab to remove.

  3. Insert the new wiper blade onto the wiper arm until a click sounds.

  4. Rotate the wiper blade so the dimple is in the groove.

  • After wiper blade replacement, return the wiper arm to its original position; otherwise it may be damaged when the bonnet is opened.

  • Make sure the wiper blades contact the glass; otherwise the arm may be damaged from wind pressure.
