Nissan Leaf Owners Manual | 2023
13.3. Traction motor serial number

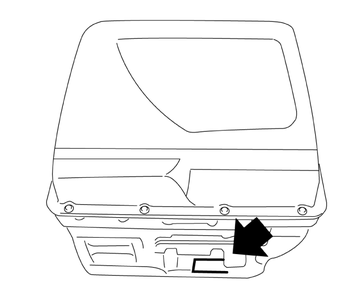

The serial number is stamped on the traction motor as shown.
Parent topic:
Vehicle identification
