Nissan Leaf Owners Manual | 2023

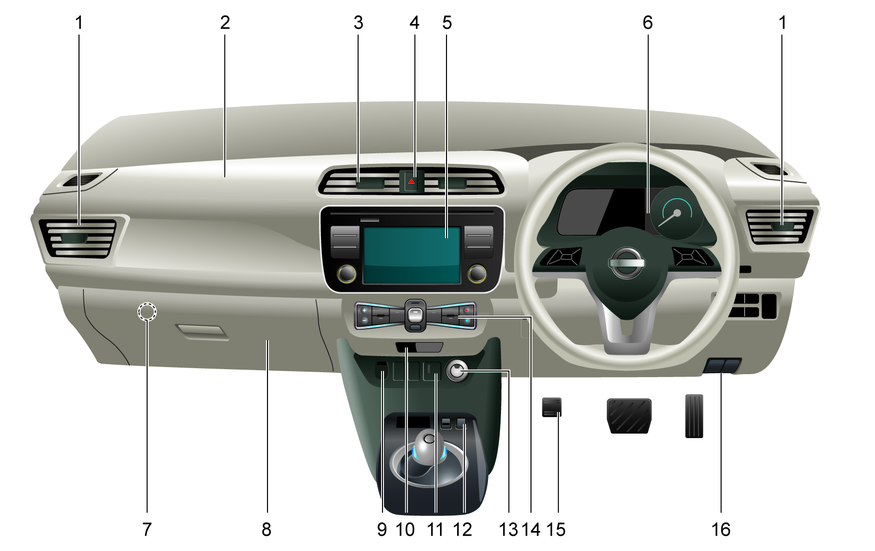

2.6.2. Right-Hand Drive (RHD) model

1.Side vent (
Vents
)
2.Front passenger supplemental air bag (
Supplemental Restraint System (SRS)
)
3.Centre vent (
Vents
)
4.Hazard warning flasher switch (
Hazard warning flasher switch
)
5.Audio system**, or (
Audio system (where fitted)
)*
— Bluetooth® Hands-Free Phone System**, or (
Bluetooth® mobile phone feature
)*
— Centre multi-function control panel**
— Navigation system**
— Vehicle information and setting buttons**
6.Meters and gauges (
Meters and gauges
)
7.Front passenger air bag switch (
Front seat-mounted side-impact supplemental air bag system
)
8.Glove box (
Storage
)
9.Power outlet (
Power outlet
)
10.Front passenger air bag status light (
Supplemental front-impact air bag system
)
11.iPod connector/USB connector** or (
AUX and USB connection ports
)*
— Auxiliary input socket** or (
AUX and USB connection ports
)*
12.e-Pedal switch* (
e-Pedal System
)
13.Power switch (
Push-button power switch
)
14.Heater and air conditioner control (
Climate control system
)
15.Footpedal Parking brake* (
Parking brake
)
16.Bonnet release handle (
Bonnet
)
*:where fitted
**:See the separately provided NissanConnect Owner's Manual
