Nissan Leaf Owners Manual | 2023

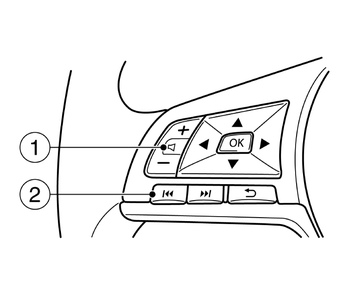

8.9.1.2. Steering wheel switches for audio and hands-free telephone control
(1)
Volume buttons
(2)
Tuning switches
Audio control buttons
Phone control buttons
Parent topic:
Display screen, heater and air conditioner (climate control system)
