Nissan Ariya Owners Manual | 2024

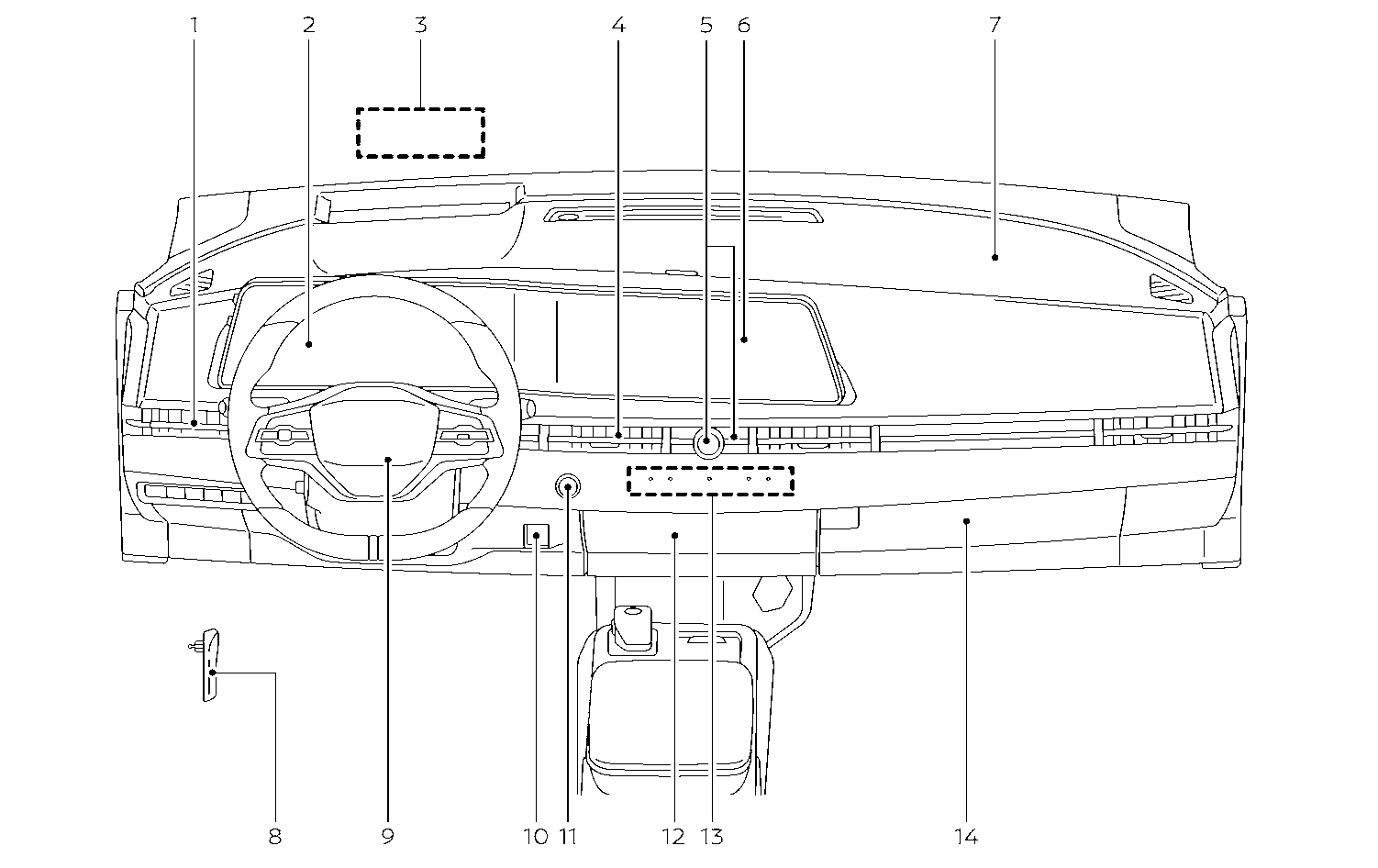

2.7.1. Left-Hand Drive (LHD) model

1.Side vent (
Side vents
)
2.Meters and gauges (
Meters and gauges
)/Vehicle information display (
Vehicle information display
)/Clock (
Clock
)
3.Head Up Display (HUD)* (
Head Up Display (HUD) (where fitted)
)
4.Centre vent (
Centre vents
)
5.Audio switches**
6.Touch screen display
— Audio system** or navigation system**
— Rear view monitor* (
Rear view monitor (where fitted)
)
— Intelligent Around View Monitor* (
Intelligent Around View Monitor (where fitted)
)
— Bluetooth® Hands-Free Phone System**
— Heater and air conditioner control (
Heater and air conditioner
)
— Heated seat* (
Heated seats (where fitted)
)
— Climate controlled seat* (
Climate controlled seats (where fitted)
)
— Heated windscreen* (
Heated windscreen (where fitted)
)
— Heated steering wheel* (
Heated steering wheel (where fitted)
)
7.Front passenger supplemental air bag (
Supplemental Restraint System (SRS)
)
8.Bonnet release handle (
Bonnet
)
9.Driver supplemental front-impact air bag (
Supplemental Restraint System (SRS)
)
10.Parking brake switch (
Parking brake
)
11.Push-button power switch (
Push-button power switch
)
12.Flexible centre storage (
Flexible centre storage
)
13.Heater and air conditioner control (
Heater and air conditioner
)
— Rear window and outside mirror defroster switch (
Rear window and outside mirror defroster switch
)
14.Glove box (
Glove box
)
*:where fitted
**: See the separate NissanConnect Owner's Manual.

Parent topic:

Instrument panel
